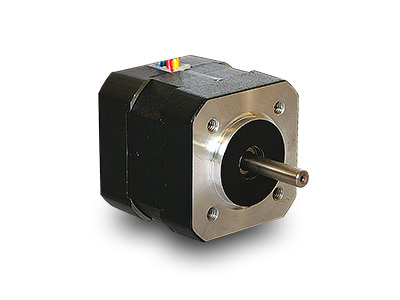

Brushless motor 24VDC 1.9A 4000rpm 26W
Product name: B4240-24 | SKU: 13042050
Brushless DC motor, BLDC motor voltage 24VDC current 1.9A speed 4000rpm power 26W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$180.60
≥ 5 pcs
$151.80
≥ 25 pcs
$106.80
≥ 50 pcs
$69.70
≥ 100 pcs

In stock

Power
26W
Voltage
24VDC
Nominal speed
4000rpm
Nominal torque
8.92oz-in
Length
1.59in
Profile height
1.65in
Profile width
1.65in
Nominal current
1.9A
Diameter
0in
Weight
10.58oz
SKU
13042050
Some of the possible customizations:
Shaft length
Shaft profile (D-shaft or circular)
Gearbox
Connectors
Encoder
For any inquiries regarding customizations, please contact us at:
Note

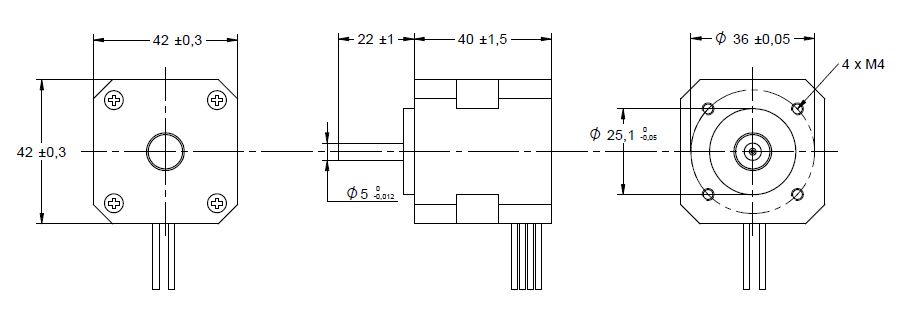

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
