Home / Stepping motors  / Stepping motors stepping angle 1.8 degrees Connector

Type
Holding torque
Size
Length
Nominal current
Inductance
Resistance
Step degrees

Stepping motors

Stepping motors of hybrid type with 1.8 degree step angle. Holding torque between 0.06-21.00 Nm. Supplied with cable connection. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.

Stepping motors stepping angle 0.9 degrees Cable

Stepping motors stepping angle 1.8 degrees Connector

Stepping motors stepping angle 1.8 degrees Cable

Stepping motor drivers


SHC2030-18-060
Stepping motor 1,8° 0,02Nm 0,6A 20x20mm Kontakt
Product name: SHC2030-18-060 | SKU: 13039136
Type
Connector
Holding torque
0.01lb-ft
Nominal current
0.6A
Inductance
1.7mH
Step degrees
1.8°
1+
$54.50
5+
$53.50
25+
$31.00
50+
$22.00
100+
Mail Mail
Spin UpSpin Down

Available on backorder

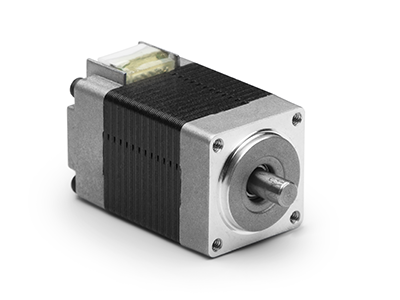

SHC2033-18-060
Stepping motor 1,8° 0,02Nm 0,6A 20x20mm Kontakt
Product name: SHC2033-18-060 | SKU: 13039137
Type
Connector
Holding torque
0.01lb-ft
Nominal current
0.6A
Inductance
1.7mH
Step degrees
1.8°
1+
$55.00
5+
$54.00
25+
$31.50
50+
$22.00
100+
Mail Mail
Spin UpSpin Down

In stock

SHC2042-18-060
Stepping motor 1,8° 0,03Nm 0,6A 20x20mm Kontakt
Product name: SHC2042-18-060 | SKU: 13039138
Type
Connector
Holding torque
0.02lb-ft
Nominal current
0.6A
Inductance
1.5mH
Step degrees
1.8°
1+
$64.00
5+
$63.00
25+
$37.00
50+
$25.50
100+
Mail Mail
Spin UpSpin Down

Available on backorder

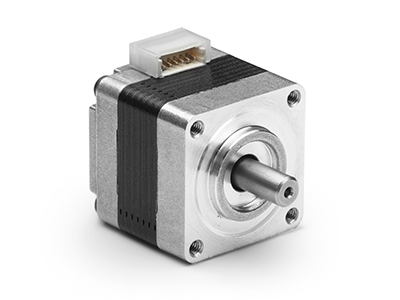

SHC2524-18-070
Stepping motor 1,8° 0,03Nm 0,7A 25x25mm Kontakt
Product name: SHC2524-18-070 | SKU: 13039139
Type
Connector
Holding torque
0.02lb-ft
Nominal current
0.7A
Inductance
2.4mH
Step degrees
1.8°
1+
$82.50
5+
$81.00
25+
$45.50
50+
$27.50
100+
Mail Mail
Spin UpSpin Down

In stock

SHC2832-18-067
Stepping motor 1,8° 0,07Nm 0,67A 28x28mm Kontakt
Product name: SHC2832-18-067 | SKU: 13039121
Type
Connector
Holding torque
0.05lb-ft
Nominal current
0.67A
Inductance
4mH
Step degrees
1.8°
1+
$64.00
5+
$63.00
25+
$35.50
50+
$25.50
100+
Mail Mail
Spin UpSpin Down

Available on backorder

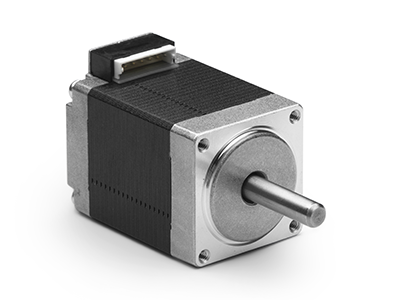

SHC2840-18-067
Stepping motor 1,8° 0,1Nm 0,67A 28x28mm Kontakt
Product name: SHC2840-18-067 | SKU: 13039122
Type
Connector
Holding torque
0.07lb-ft
Nominal current
0.67A
Inductance
4.8mH
Step degrees
1.8°
1+
$73.00
5+
$71.50
25+
$40.50
50+
$29.50
100+
Mail Mail
Spin UpSpin Down

In stock

SHC2852-18-067
Stepping motor 1,8° 0,12Nm 0,67A 28x28mm Kontakt
Product name: SHC2852-18-067 | SKU: 13039123
Type
Connector
Holding torque
0.09lb-ft
Nominal current
0.67A
Inductance
5.6mH
Step degrees
1.8°
1+
$85.50
5+
$84.00
25+
$48.00
50+
$34.50
100+
Mail Mail
Spin UpSpin Down

Available on backorder

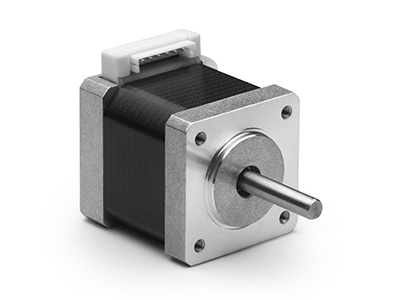

SHC3538-18-120
Stepping motor 1,8° 0,23Nm 1,2A 35x35mm Kontakt
Product name: SHC3538-18-120 | SKU: 13039124
Type
Connector
Holding torque
0.17lb-ft
Nominal current
1.2A
Inductance
4mH
Step degrees
1.8°
1+
$47.50
5+
$47.00
25+
$32.00
50+
$27.00
100+
Mail Mail
Spin UpSpin Down

In stock

SHC3544-18-120
Stepping motor 1,8° 0,28Nm 1,2A 35x35mm Kontakt
Product name: SHC3544-18-120 | SKU: 13039125
Type
Connector
Holding torque
0.21lb-ft
Nominal current
1.2A
Inductance
5.2mH
Step degrees
1.8°
1+
$52.00
5+
$51.00
25+
$35.00
50+
$29.50
100+
Mail Mail
Spin UpSpin Down

Available on backorder
SHC4234-18-133
Stepping motor 1,8° 0,22Nm 1,33A 42x42mm Kontakt
Product name: SHC4234-18-133 | SKU: 13039126
Type
Connector
Holding torque
0.16lb-ft
Nominal current
1.33A
Inductance
2.5mH
Step degrees
1.8°
1+
$37.50
5+
$37.00
25+
$21.50
50+
$16.00
100+
Mail Mail
Spin UpSpin Down

Available on backorder

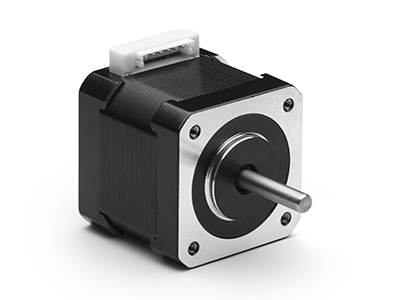

SHC4240-18-168
Stepping motor 1,8° 0,36Nm 1,68A 42x42mm Kontakt
Product name: SHC4240-18-168 | SKU: 13039127
Type
Connector
Holding torque
0.27lb-ft
Nominal current
1.68A
Inductance
3.2mH
Step degrees
1.8°
1+
$40.00
5+
$39.50
25+
$23.00
50+
$17.50
100+
Mail Mail
Spin UpSpin Down

In stock

SHC4248-18-168
Stepping motor 1,8° 0,44Nm 1,68A 42x42mm Kontakt
Product name: SHC4248-18-168 | SKU: 13039128
Type
Connector
Holding torque
0.32lb-ft
Nominal current
1.68A
Inductance
2.8mH
Step degrees
1.8°
1+
$47.50
5+
$46.50
25+
$27.50
50+
$20.50
100+
Mail Mail
Spin UpSpin Down

In stock

SHC5741-18-280
Stepping motor 1,8° 0,6Nm 2,8A 57x57mm Kontakt
Product name: SHC5741-18-280 | SKU: 13039129
Type
Connector
Holding torque
0.44lb-ft
Nominal current
2.8A
Inductance
1.8mH
Step degrees
1.8°
1+
$51.50
5+
$51.00
25+
$30.50
50+
$23.00
100+
Mail Mail
Spin UpSpin Down

Available on backorder

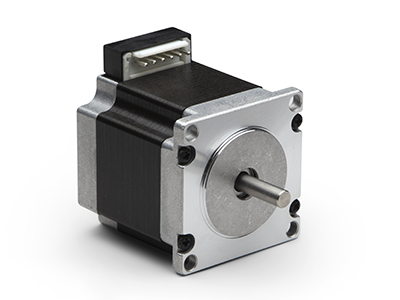

SHC5756-18-280
Stepping motor 1,8° 1,4Nm 2,8A 57x57mm Kontakt
Product name: SHC5756-18-280 | SKU: 13039130
Type
Connector
Holding torque
1.03lb-ft
Nominal current
2.8A
Inductance
3.2mH
Step degrees
1.8°
1+
$59.00
5+
$58.50
25+
$35.50
50+
$27.00
100+
Mail Mail
Spin UpSpin Down

Available on backorder
SHC5775-18-280
Stepping motor 1,8° 2,3Nm 2,8A 57x57mm Kontakt
Product name: SHC5775-18-280 | SKU: 13039131
Type
Connector
Holding torque
1.7lb-ft
Nominal current
2.8A
Inductance
5.3mH
Step degrees
1.8°
1+
$91.00
5+
$90.00
25+
$55.00
50+
$42.00
100+
Mail Mail
Spin UpSpin Down

In stock

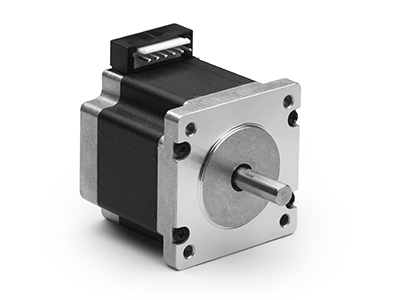

SHC6047-18-280
Stepping motor 1,8° 1,1Nm 2,8A 60x60mm Kontakt
Product name: SHC6047-18-280 | SKU: 13039132
Type
Connector
Holding torque
0.81lb-ft
Nominal current
2.8A
Inductance
2mH
Step degrees
1.8°
1+
$52.00
5+
$51.00
25+
$34.00
50+
$32.50
100+
Mail Mail
Spin UpSpin Down

In stock

SHC6047-18-280
Stepping motor 1,8° 1,65Nm 2,8A 60x60mm Kontakt
Product name: SHC6047-18-280 | SKU: 13039133
Type
Connector
Holding torque
1.22lb-ft
Nominal current
2.8A
Inductance
3.6mH
Step degrees
1.8°
1+
$83.00
5+
$81.50
25+
$49.00
50+
$37.00
100+
Mail Mail
Spin UpSpin Down

In stock

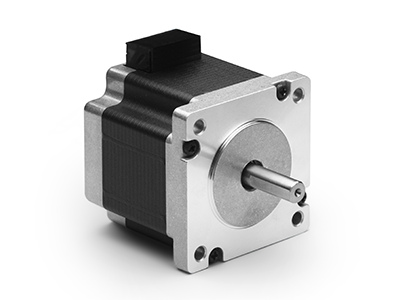

SHC6067-18-280
Stepping motor 1,8° 2,1Nm 2,8A 60x60mm Kontakt
Product name: SHC6067-18-280 | SKU: 13039134
Type
Connector
Holding torque
1.55lb-ft
Nominal current
2.8A
Inductance
4.6mH
Step degrees
1.8°
1+
$101.50
5+
$100.00
25+
$61.00
50+
$46.50
100+
Mail Mail
Spin UpSpin Down

Available on backorder
SHC6088-18-280
Stepping motor 1,8° 3Nm 2,8A 60x60mm Kontakt
Product name: SHC6088-18-280 | SKU: 13039135
Type
Connector
Holding torque
2.21lb-ft
Nominal current
2.8A
Inductance
6.8mH
Step degrees
1.8°
1+
$126.50
5+
$124.50
25+
$75.50
50+
$57.50
100+
Mail Mail
Spin UpSpin Down

Available on backorder
