Home / Linear actuators / Mounting brackets

Show only items in stock

Mounting brackets

Mounting brackets for linear actuators. All brackets can be customized per request. Read more here about customizations and please contact us for further information.

DLA-series

DLB-series

DMA-series

Mounting brackets

Control boxes

Controls

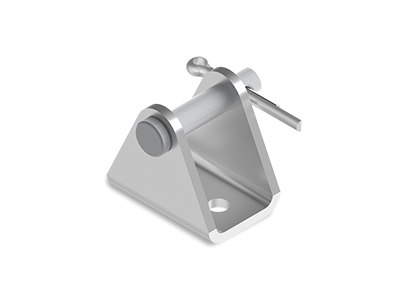

ALA-12

Linear actuator mounting bracket 3000N 8mm

Product name: ALA-12 | SKU: 16099996

Max. Load

3000N

Bolt diameter

8mm

1+

€22.40

2+

€22.40

5+

€17.90

10+

€17.90

25+

Spin Up Spin Down

In stock

ALA-12B

Linear actuator mounting bracket 3000N 10mm

Product name: ALA-12B | SKU: 16199996

Max. Load

3000N

Bolt diameter

10mm

1+

€22.40

2+

€22.40

5+

€17.90

10+

€17.90

25+

Spin Up Spin Down

Available on backorder

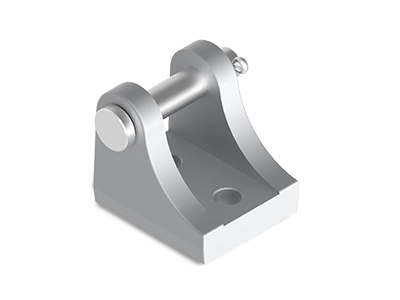

ALA-13

Linear actuator mounting bracket 17000N 12,9mm

Product name: ALA-13 | SKU: 11099999

Max. Load

17000N

Bolt diameter

12.9mm

1+

€76.10

2+

€76.10

5+

€60.90

10+

€60.90

25+

Spin Up Spin Down

In stock

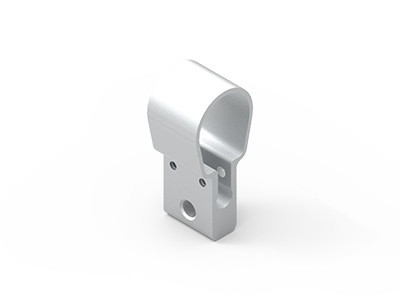

ALA-22

Linear actuator mounting bracket

Product name: ALA-22 | SKU: 16099999

1+

€22.40

2+

€22.40

5+

€17.90

10+

€17.90

25+

Spin Up Spin Down

In stock
