Planetary DC motor 3VDC 0.41A 39rpm 0.17W.
Product name: PD1230-3-256-F | SKU: 10321204
Brush-commutated planetary gear DC motor, direct current motor voltage of 3VDC , current 0.41A, rated speed 39rpm power 0.17W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€185.00
≥ 5 pcs
€115.90
≥ 25 pcs
€54.90
≥ 50 pcs
€48.00
≥ 100 pcs

In stock

Power
0.17W
Voltage
3VDC
Nominal speed
39rpm
Nominal torque
76.49mNm
Length
52.7mm
Nominal current
0.41A
Diameter
12mm
Encoder
No
Weight
31.4g
SKU
10321204
Some of the possible customizations:
Shaft length
Shaft profile
Connectors
Cabling
Gear & pinion material
Operating temperature
For any inquiries regarding customizations, please contact us at:
Note

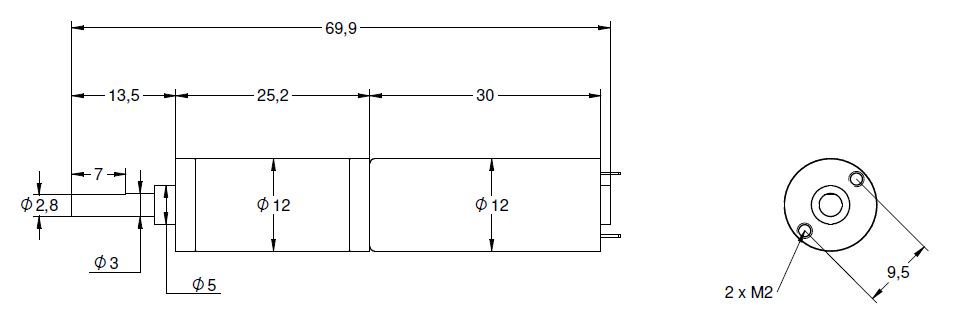

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
