Brush-commutated planetary gear DC motors, direct current motors . These planetary gear DC motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without encoder. Existing gear types are planetary gears or spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.

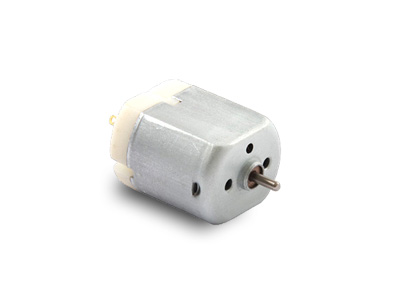

Brush DC motors no gear
n-k-series
Power
0.7 - 421 W
Voltage
2.4 - 36 VDC
Nominal current
0.1 - 43 A
Nominal speed
2020 - 23000 rpm

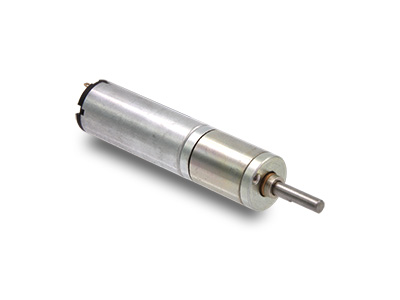

Planetary gear brush DC motors
pd-series
Power
0.02 - 421 W
Voltage
2.4 - 48 VDC
Nominal current
0.1 - 43 A
Nominal speed
1.9 - 2400 rpm

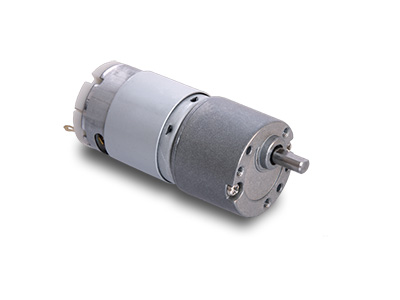

Spur gear brush DC motors
sd-series
Power
0.06 - 250 W
Voltage
3 - 24 VDC
Nominal current
0.1 - 16 A
Nominal speed
1 - 1800 rpm

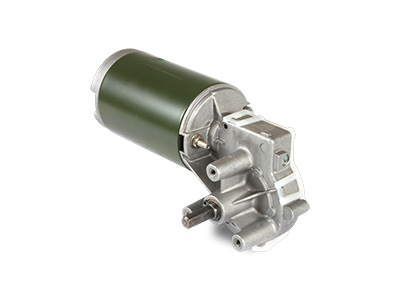

Worm gear brush DC motors
wd-series
Power
0.28 - 421 W
Voltage
12 - 24 VDC
Nominal current
0.1 - 43 A
Nominal speed
4 - 408 rpm

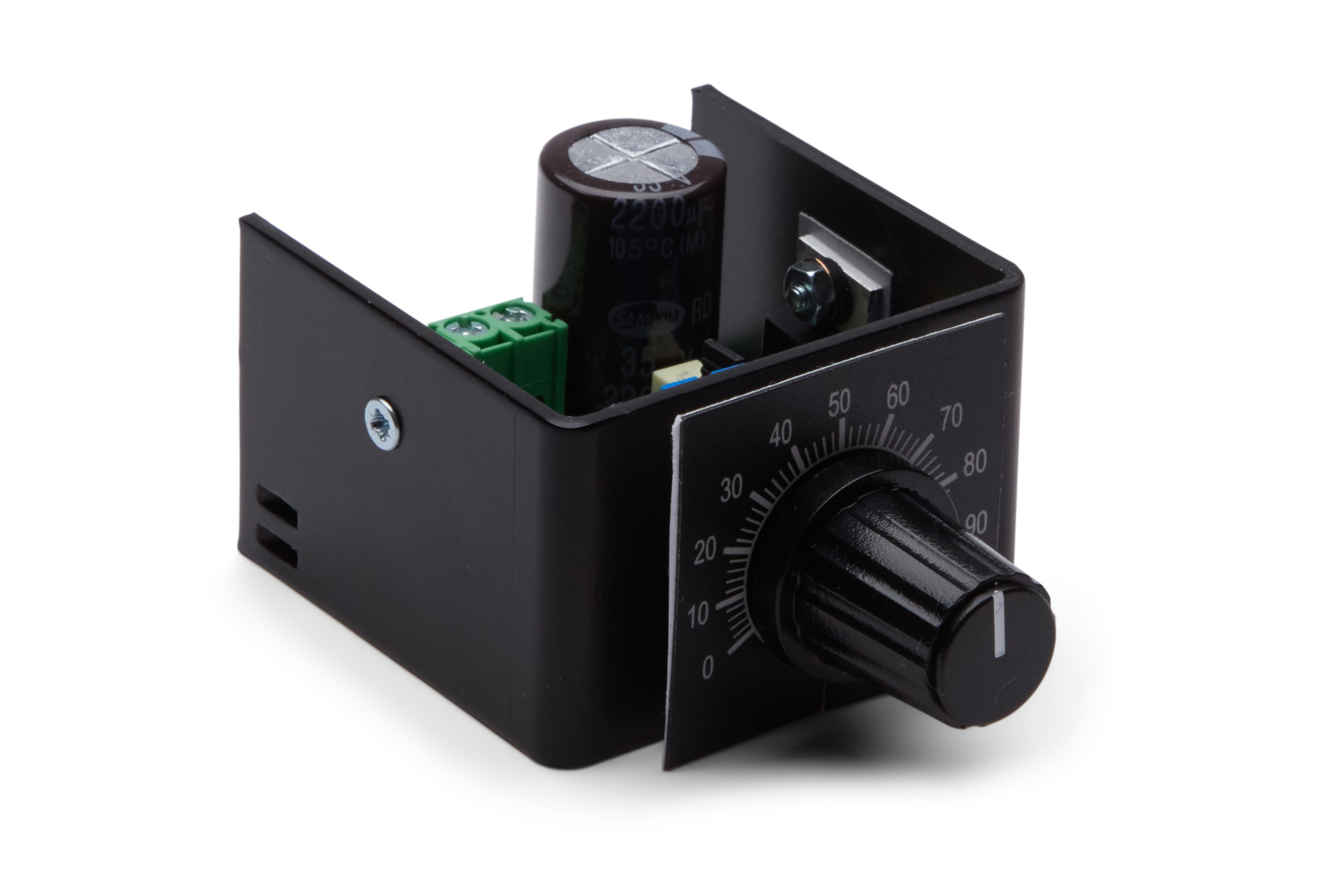

Brushed DC motor drivers
dpwm-series
Power
80 - 200 W
Voltage
10 - 35 VDC
Nominal current
3 - 20 A
| Product | Nominal current | Diameter | Encoder | Length | Power | Nominal speed | Nominal torque | Profile | Voltage | Sample price | Stock | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PD1230-2.4-1024-F | 0,45 | 12 mm | No | 56 | 0,09 | 10 rpm | 196,13 mNm | Circular | 2,4 V | 189.50 EUR |
Yes |
 |
|
PD1230-2.4-1024-FE | 0,45 | 12 mm | Yes | 56 | 0,09 | 10 rpm | 196,13 mNm | Circular | 2,4 V | 210.00 EUR |
Yes |
|
|
PD1230-2.4-16-F | 0,45 | 12 mm | No | 46,1 | 0,32 | 600 rpm | 6,86 mNm | Circular | 2,4 V | 189.50 EUR |
Yes |
|
|
PD1230-2.4-16-FE | 0,45 | 12 mm | Yes | 46,1 | 0,32 | 600 rpm | 6,86 mNm | Circular | 2,4 V | 210.00 EUR |
Yes |
|
|
PD1230-2.4-256-F | 0,45 | 12 mm | No | 52,7 | 0,18 | 38 rpm | 82,38 mNm | Circular | 2,4 V | 189.50 EUR |
Yes |
|
|
PD1230-2.4-256-FE | 0,45 | 12 mm | Yes | 52,7 | 0,18 | 38 rpm | 82,38 mNm | Circular | 2,4 V | 210.00 EUR |
Yes |
|
|
PD1230-2.4-4096-F | 0,45 | 12 mm | No | 59,3 | 0,02 | 2,8 rpm | 196,13 mNm | Circular | 2,4 V | 189.50 EUR |
Yes |
|
|
PD1230-2.4-4096-FE | 0,45 | 12 mm | Yes | 59,3 | 0,02 | 2,8 rpm | 196,13 mNm | Circular | 2,4 V | 210.00 EUR |
Available On Backorder |
|
|
PD1230-2.4-4-F | 0,45 | 12 mm | No | 42,8 | 0,42 | 2400 rpm | 1,96 mNm | Circular | 2,4 V | 189.50 EUR |
Yes |
|
|
PD1230-2.4-4-FE | 0,45 | 12 mm | Yes | 42,8 | 0,42 | 2400 rpm | 1,96 mNm | Circular | 2,4 V | 210.00 EUR |
Yes |
|
