PD1230-3-16-F
PD1230-3-16-F
≥ 1 pcs
€185.00
≥ 5 pcs
€115.90
≥ 25 pcs
€54.90
≥ 50 pcs
€48.00
≥ 100 pcs

In stock

  • Specification
  • Customizations

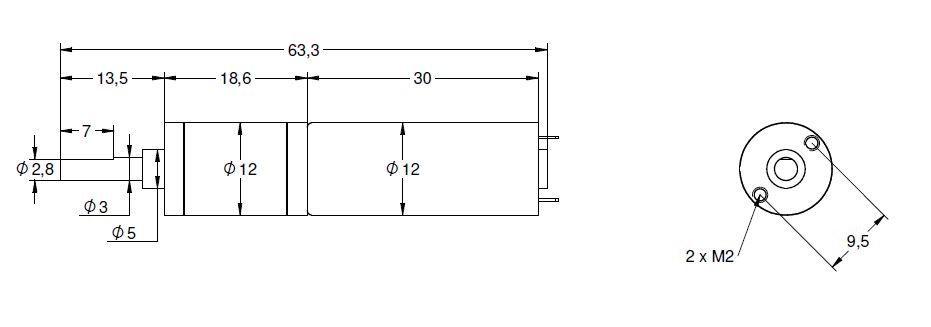

  • Drawing
  • Datasheet and downloads
Voltage
3 V
Diameter
12 mm
Power
0.59 W
Length
16.1 mm
Nominal speed
610 rpm
Nominal torque
6.4 mNm
Current at maximum load
0 A
Weight
0.0277 kg
SKU
10321202
Some of the possible customizations:
Shaft length
Shaft profile
Connectors
Cabling
Gear & pinion material
Operating temperature
For any inquiries regarding customizations, please contact us at:
Catalog
Datasheet
Drawing
3D CAD (.stp)
