PD1230-2.4-4-FE
PD1230-2.4-4-FE
≥ 1 pcs
€204.80
≥ 5 pcs
€129.80
≥ 25 pcs
€68.20
≥ 50 pcs
€59.90
≥ 100 pcs

In stock

  • Specification
  • Customizations

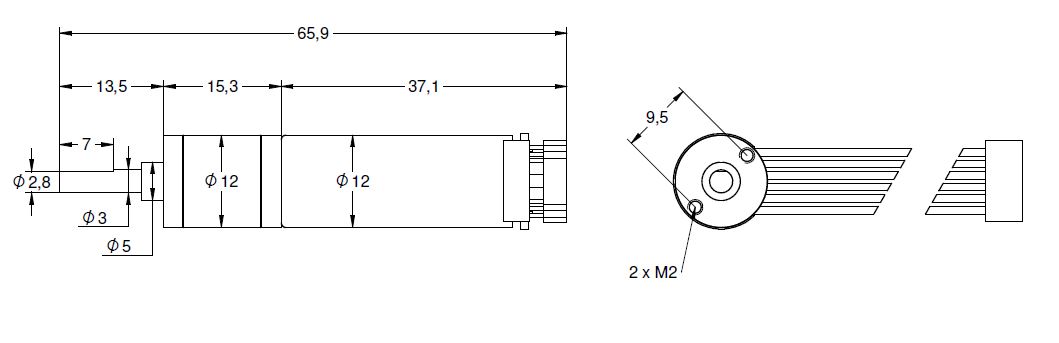

  • Drawing
  • Datasheet and downloads
Voltage
2.4 V
Diameter
12 mm
Power
0.62 W
Length
12.8 mm
Nominal speed
2400 rpm
Nominal torque
2 mNm
Current at maximum load
0 A
Weight
0.0271 kg
SKU
10331201
Some of the possible customizations:
Shaft length
Shaft profile
Connectors
Cabling
Gear & pinion material
Operating temperature
For any inquiries regarding customizations, please contact us at:
Catalog
Datasheet
Drawing
3D CAD (.stp)
