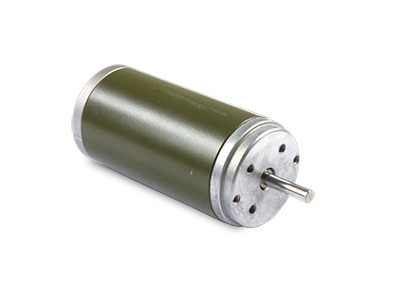

DC-motors 12VDC 2A 2700rpm 13W.
Product name: D4387-12 | SKU: 143929001
Brush-commutated DC motor, direct current motor voltage of 12VDC , current 2A, rated speed 2700rpm power 13W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$173.50
≥ 5 pcs
$145.00
≥ 25 pcs
$125.50
≥ 50 pcs
$82.50
≥ 100 pcs

Available on backorder

Power
13W
Voltage
12VDC
Nominal speed
2700rpm
Nominal torque
6.23oz-in
Length
1.73in
Nominal current
2A
Diameter
1.69in
Weight
14.11oz
SKU
143929001
Some of the possible customizations:
Shaft length
Shaft profile
Operating temperature -40° -- +80°
Encoder
For any inquiries regarding customizations, please contact us at:
Note

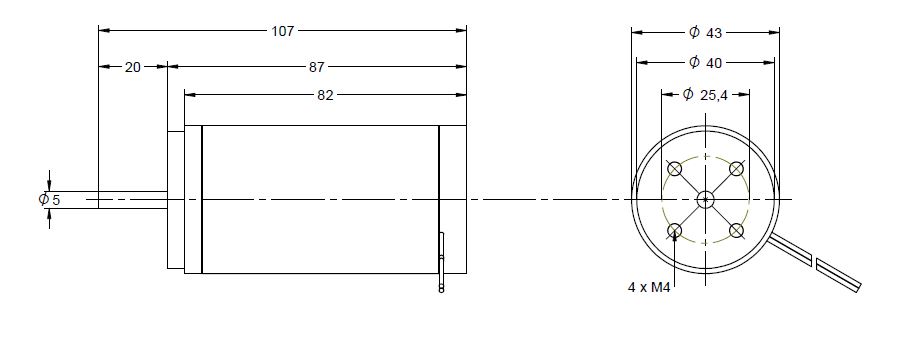

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
