Brush-commutated DC motors, direct current motors, with a power up to 400W. The motors include a range with supply voltages between 2-36V and can, depending on the type, be supplied with or without gear, encoder and brake. Existing gear types are planetary gears, spur gears and worm gears. EMC filterns can be obtained as capacitors or varistors. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
DC-motors
Power
0.7 - 421 W
Voltage
2.4 - 36 VDC
Nominal current
0.1 - 43 A
Nominal speed
2020 - 23000 rpm
Planetary gear
Power
0.02 - 421 W
Voltage
2.4 - 48 VDC
Nominal current
0.1 - 43 A
Nominal speed
1.9 - 2400 rpm
Spur gear
Power
0.06 - 250 W
Voltage
3 - 24 VDC
Nominal current
0.1 - 16 A
Nominal speed
1 - 1800 rpm
Worm gear dc motors
Power
0.28 - 421 W
Voltage
12 - 24 VDC
Nominal current
0.1 - 43 A
Nominal speed
4 - 408 rpm

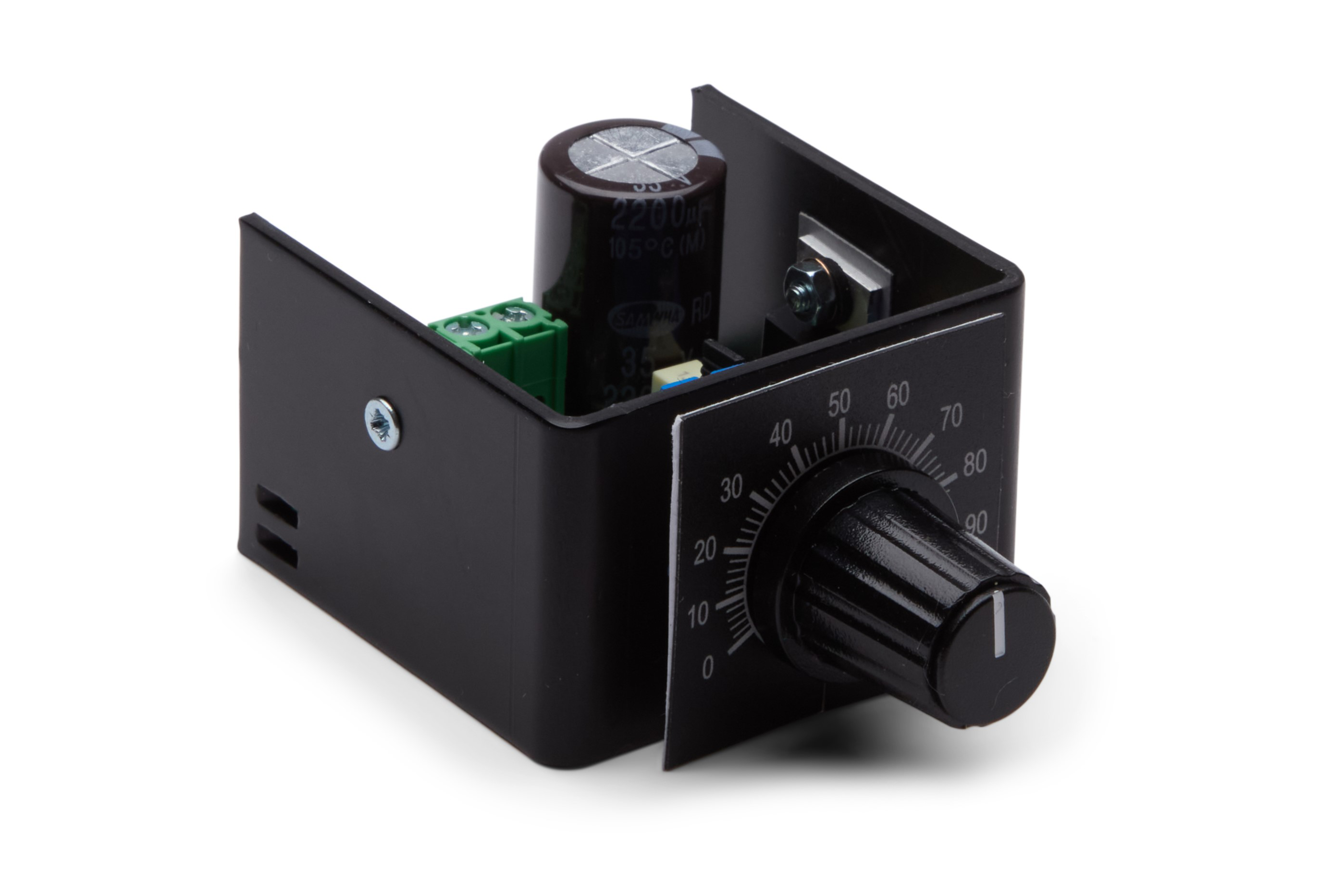

Brushed DC Motor Drivers
Power
80 - 200 W
Voltage
10 - 35 VDC
Nominal current
3 - 20 A
| Product | Nominal current | Diameter | Length | Power | Nominal speed | Nominal torque | Voltage | Sample price | Stock | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
755-19175-C | 0,6 | 42,4 mm | 59 | 14 | 3900 rpm | 34 mNm | 36 V | 54.30 EUR |
Yes |
 |
|
755-3262-C | 2,1 | 42,4 mm | 59 | 34 | 7400 rpm | 43 mNm | 24 V | 54.30 EUR |
Yes |
|
|
755-5027F-C | 4,9 | 42,4 mm | 59 | 41 | 8400 rpm | 46 mNm | 12 V | 54.30 EUR |
Yes |
|
|
755-8512F-C | 20 | 42,4 mm | 59 | 140 | 14000 rpm | 98 mNm | 9,6 V | 54.30 EUR |
Yes |
|
 |
770-32165-CC | 1,3 | 45 mm | 66 | 22 | 3900 rpm | 53 mNm | 24 V | 55.20 EUR |
Yes |
|
|
770-4087-CC | 2,8 | 45 mm | 66 | 21 | 3500 rpm | 56 mNm | 12 V | 55.20 EUR |
Yes |
|
|
770-7040-CC | 6 | 45 mm | 66 | 53 | 8400 rpm | 59 mNm | 12 V | 55.20 EUR |
Yes |
|
|
770-8525F-CC | 12 | 45 mm | 66 | 110 | 14000 rpm | 80 mNm | 12 V | 55.20 EUR |
Yes |
|
 |
775-5520F-CC | 11 | 45 mm | 66 | 180 | 18000 rpm | 94 mNm | 24 V | 55.20 EUR |
Yes |
|
|
775-8013F-C-CC | 16 | 45 mm | 66 | 200 | 19000 rpm | 100 mNm | 18 V | 55.20 EUR |
Yes |
|
