Home
/ Linear actuators
/ DLB-series
/ DLB-12-10-A-200-POT-IP65
DLB-12-10-A-200-POT-IP65
DLB-12-10-A-200-POT-IP65
Unit prices
≥ 1 pcs
€517.10
≥ 5 pcs
€381.00
≥ 25 pcs
€305.50
≥ 50 pcs
€282.90
≥ 100 pcs
Spin Up
Spin Down
In stock p >
Specification
Customization

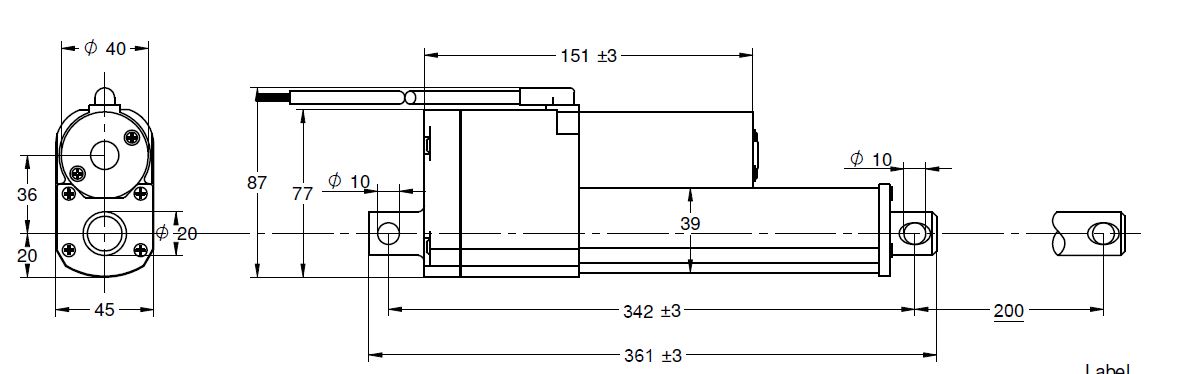

Drawing
Data sheet and downloads
Voltage
12 V
Maximum Force
500 N
Speed at maximum load
25 mm/s
Stroke length
200 mm
Current at maximum load
4.4 A
Weight
1.52 kg
SKU
16112203
Some of the possible customizations:
Stroke length (min. 40mm – max. 500mm)
Limit switch output signals
Control box & hand controller
Dimension tolerances
Vertical or horizontal mounting holes
Front connector dimensions
Mounting bracket
Voltage (36VDC, 48VDC)
Connectors
Cabling
For any inquiries regarding customizations, please contact us at:
info@transmotec.com
+46 879 235 30
