DLB-12-10-A-150-POT-IP65
DLB-12-10-A-150-POT-IP65
≥ 1 pcs
€508.40
≥ 5 pcs
€372.10
≥ 25 pcs
€296.60
≥ 50 pcs
€274.00
≥ 100 pcs

In stock

  • Specification
  • Customizations

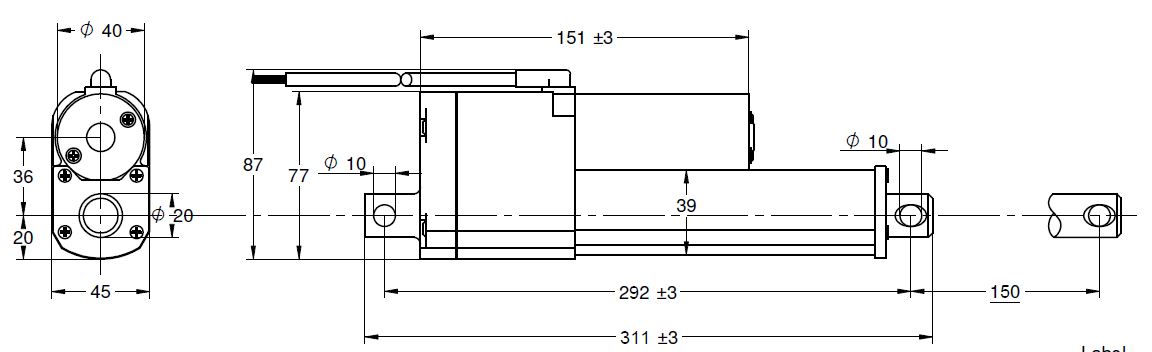

  • Drawing
  • Datasheet and downloads
Voltage
12 V
Maximum Force
500 N
Speed at maximum load
25 mm/s
Stroke length
150 mm
Current at maximum load
4.4 A
Weight
1.4 kg
SKU
16112202
Some of the possible customizations:
Stroke length (min. 40mm – max. 500mm)
Limit switch output signals
Control box & hand controller
Dimension tolerances
Vertical or horizontal mounting holes
Front connector dimensions
Mounting bracket
Voltage (36VDC, 48VDC)
Connectors
Cabling
For any inquiries regarding customizations, please contact us at:
Catalog
Datasheet
Drawing
3D CAD (.stp)
