Transmotec

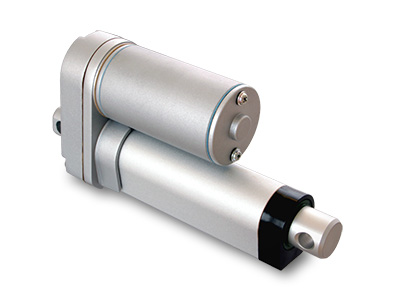

DLA-12-10-A-250-IP65
DLA-12-10-A-250-IP65
Unit prices
≥ 1 pcs
€221.50
≥ 5 pcs
€186.80
≥ 25 pcs
€162.60
≥ 50 pcs
€108.40
≥ 100 pcs

In stock

  • Specification
  • Customization

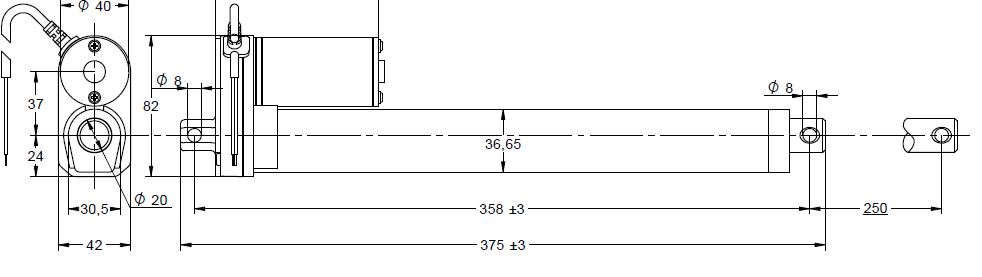

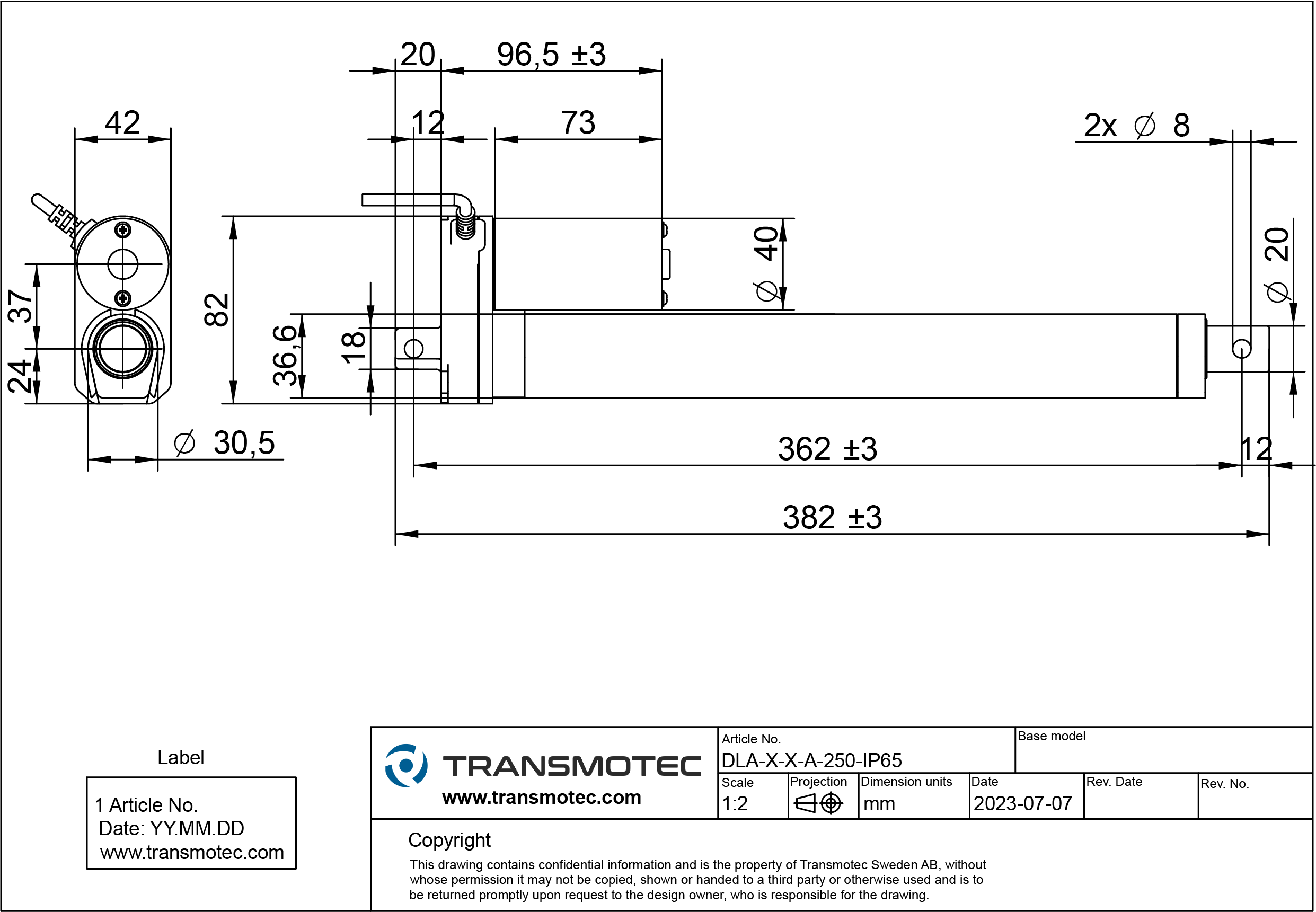

  • Drawing
  • Data sheet and downloads
Voltage
12 V
Maximum Force
300 N
Speed at maximum load
25 mm/s
Stroke length
250 mm
Current at maximum load
3 A
Weight
1.41 kg
SKU
16012015
Some of the possible customizations:
Stroke length (min. 25.4mm – max. 500mm)
Limit switch output signals
Control box & hand controller
Noise level (min. = 55dB)
Dimension tolerances
Vertical or horizontal mounting holes
Front connector material/type/dimensions
Motor pinion material
Voltage (36VDC, 48VDC)
Connectors
Cabling
For any inquiries regarding customizations, please contact us at:
