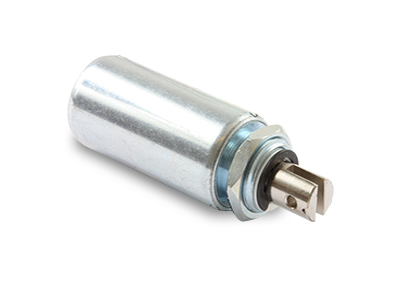

T2551L-06V
Solenoid tubular type 6VDC 16.67N 10W
Product name: T2551L-06V | SKU: 20255101
Solenoid tubular type voltage 6VDC force 16.67N stroke 18mm power 10W. The force can be significantly increased with limited energized time and with connection to higher supply voltage. The solenoids come with a return spring, and are available in various construction types such as open, cylindrical, self-holding latching bistable and holding magnet designs. All solenoids are available in mechanical pull L or push S designs and can be customized per request. Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€80.20
≥ 5 pcs
€62.20
≥ 25 pcs
€49.60
≥ 50 pcs
€32.00
≥ 100 pcs

In stock

Power
10W
Voltage
6VDC
Profile
Circular
Length
50.8mm
Diameter
25.4mm
Peak force
16.67N
Type
Pull
Weight
245g
SKU
20255101
Some of the possible customizations:
Plunger length
Plunger profile
Connectors
For any inquiries regarding customizations, please contact us at:
Datasheet

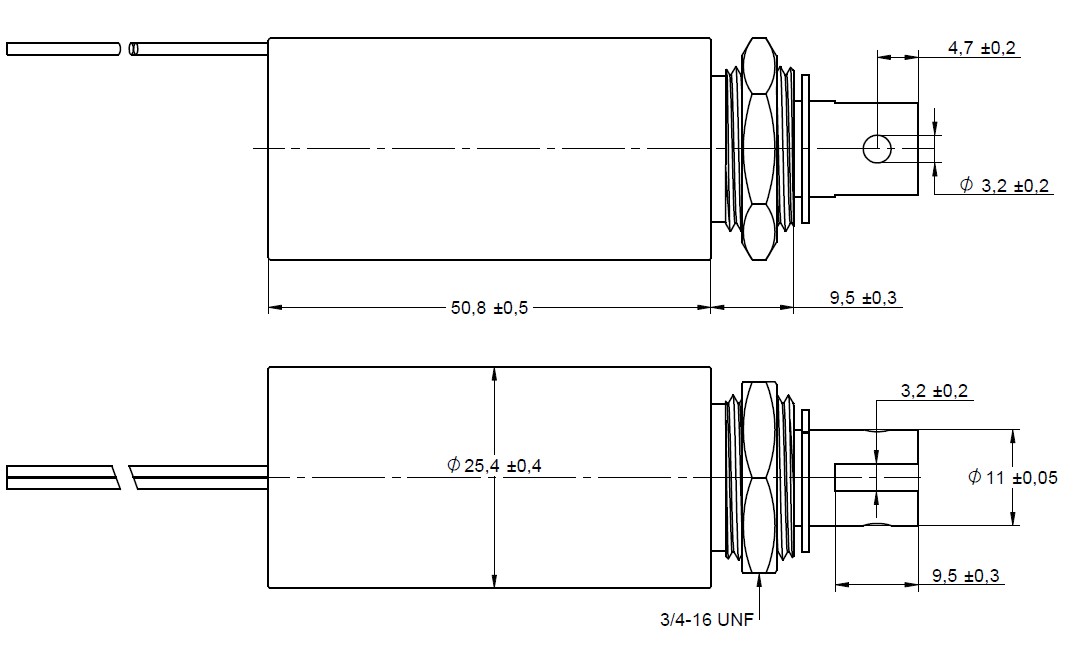

Drawing
Catalog
3D CAD (.stp)
