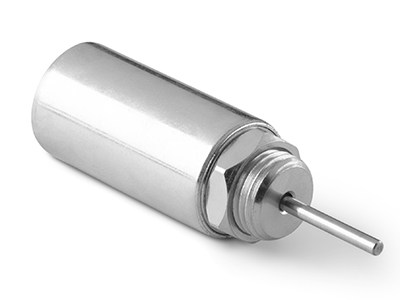

T1325S-12V
Solenoid tubular type 12VDC 1.81N 4W
Product name: T1325S-12V | SKU: 20132506
Solenoid tubular type voltage 12VDC force 1.81N stroke 15mm power 4W. The force can be significantly increased with limited energized time and with connection to higher supply voltage. The solenoids come with a return spring, and are available in various construction types such as open, cylindrical, self-holding latching bistable and holding magnet designs. All solenoids are available in mechanical pull L or push S designs and can be customized per request. Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€49.40
≥ 5 pcs
€37.90
≥ 25 pcs
€29.50
≥ 50 pcs
€19.00
≥ 100 pcs

Available on backorder

Power
4W
Voltage
12VDC
Profile
Circular
Length
26.2mm
Diameter
12.7mm
Peak force
1.81N
Type
Push
Weight
31g
SKU
20132506
Some of the possible customizations:
Plunger length
Plunger profile
Connectors
For any inquiries regarding customizations, please contact us at:
Datasheet

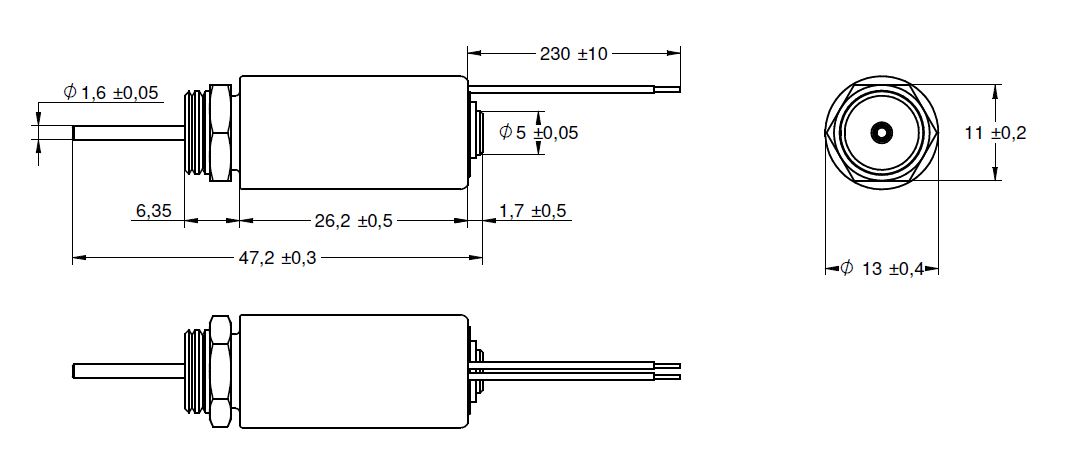

Drawing
Catalog
3D CAD (.stp)
