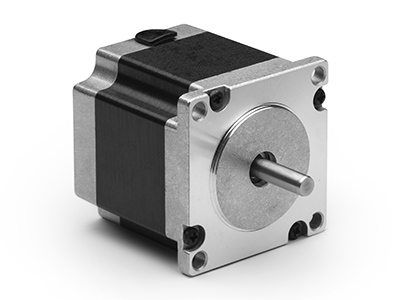

Stepping motor 1.8° 2212.68lb-ft 2.8A 57x57mm Cable
Product name: SHW57115-18-280 | SKU: 13039157
Stepping motor with specifications step angle 1.8° holding torque 2212.68lb-ft current 2.8A size 57x57mm connection Cable. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.
≥ 1 pcs
$162.50
≥ 5 pcs
$160.00
≥ 25 pcs
$97.00
≥ 50 pcs
$74.00
≥ 100 pcs

Available on backorder

Type
Cable
Holding torque
2212.68lb-ft
Size
2.24x2.24in
Length
4.53in
Nominal current
2.8A
Inductance
10mH
Resistance
2.1ohm
Step degrees
1.8°
Weight
3.97lb
SKU
13039157
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note

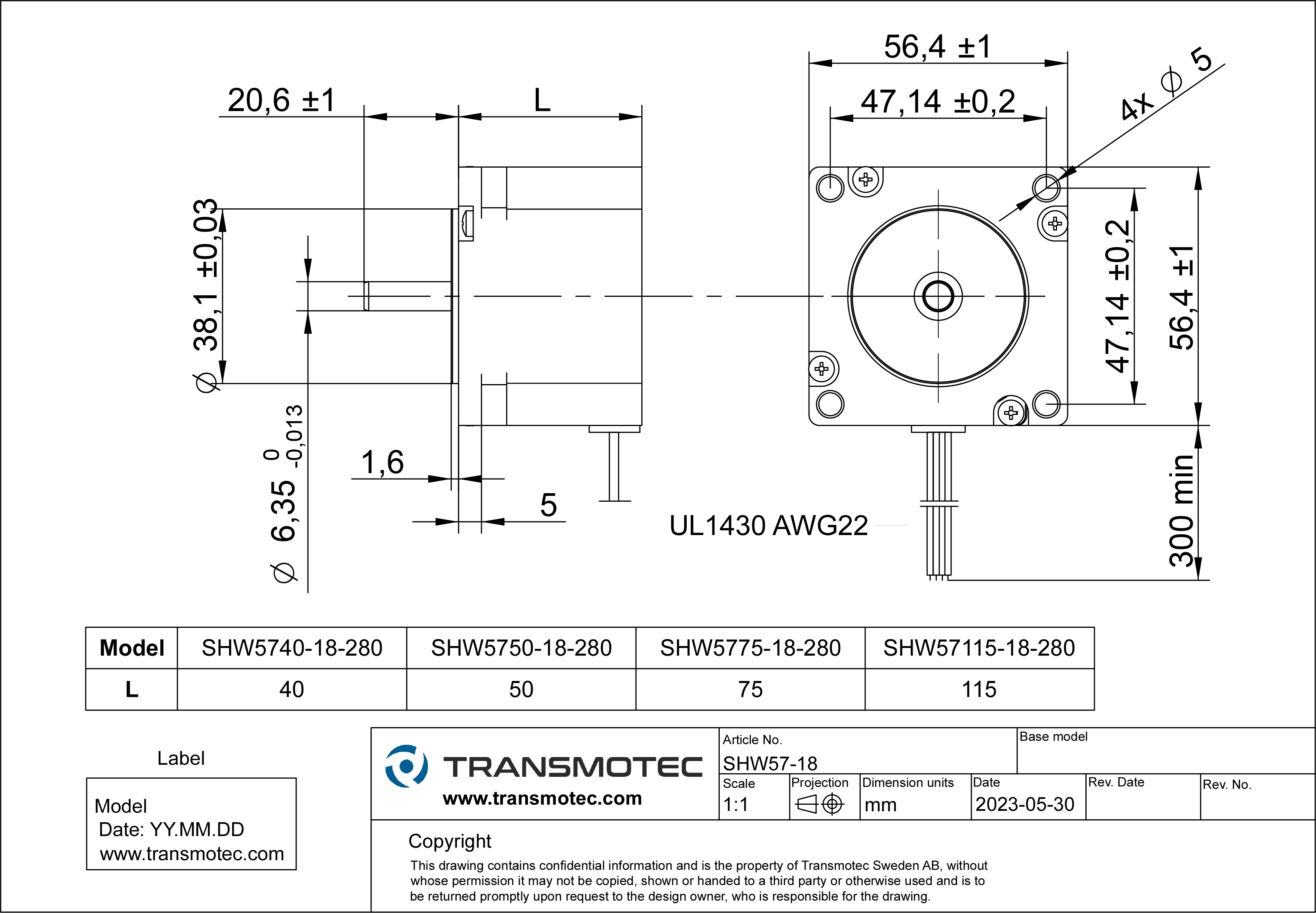

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
