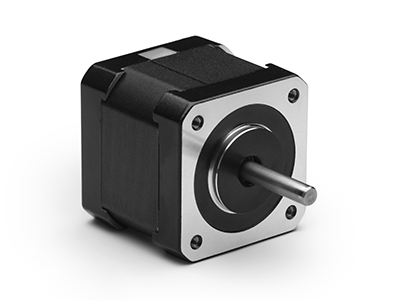

Stepping motor 0.9° 0.32lb-ft 1.68A 42x42mm Cable
Product name: SHW4247-09-168 | SKU: 13039116
Stepping motor with specifications step angle 0.9° holding torque 0.32lb-ft current 1.68A size 42x42mm connection Cable. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.
≥ 1 pcs
$56.00
≥ 5 pcs
$55.00
≥ 25 pcs
$31.50
≥ 50 pcs
$26.00
≥ 100 pcs

Available on backorder

Type
Cable
Holding torque
0.32lb-ft
Size
1.65x1.65in
Length
1.87in
Nominal current
1.68A
Inductance
5mH
Resistance
1.8ohm
Step degrees
0.9°
SKU
13039116
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
