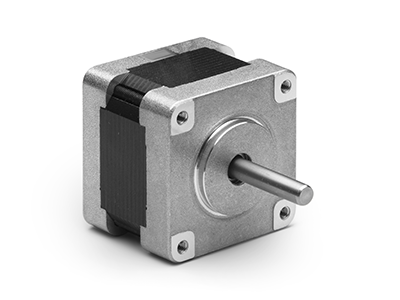

Stepping motor 1.8° 0.06lb-ft 0.4A 39x39mm Cable
Product name: SHW3920-18-040 | SKU: 13039146
Stepping motor with specifications step angle 1.8° holding torque 0.06lb-ft current 0.4A size 39x39mm connection Cable. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.
≥ 1 pcs
$24.00
≥ 5 pcs
$23.50
≥ 25 pcs
$17.50
≥ 50 pcs
$14.50
≥ 100 pcs

In stock

Type
Cable
Holding torque
0.06lb-ft
Size
1.54x1.54in
Length
0.79in
Nominal current
0.4A
Inductance
7mH
Resistance
6.6ohm
Step degrees
1.8°
Weight
1.76oz
SKU
13039146
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
