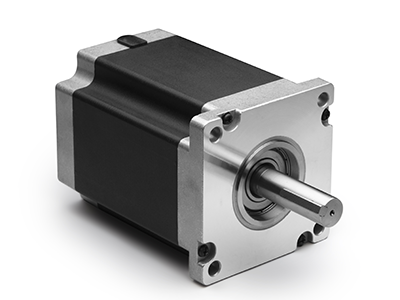

Stepping motor 1.8° 15.49lb-ft 6.5A 110x110mm Cable

Product name: SHW110150-18-650 | SKU: 13039168

Stepping motor with specifications step angle 1.8° holding torque 15.49lb-ft current 6.5A size 110x110mm connection Cable. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.
