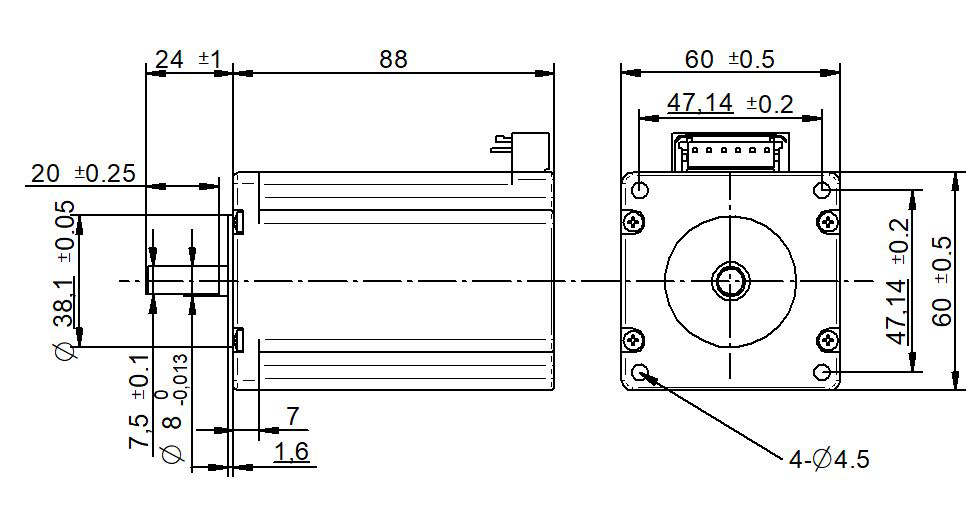

Stepping motor 1.8° 2.21lb-ft 2.8A 60x60mm Connector
Product name: SHC6088-18-280 | SKU: 13039135
Stepping motor with specifications step angle 1.8° holding torque 2.21lb-ft current 2.8A size 60x60mm connection Connector. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.
≥ 1 pcs
$126.50
≥ 5 pcs
$124.50
≥ 25 pcs
$75.50
≥ 50 pcs
$57.50
≥ 100 pcs

Available on backorder

Type
Connector
Holding torque
2.21lb-ft
Size
2.36x2.36in
Length
3.46in
Nominal current
2.8A
Inductance
6.8mH
Resistance
1.5ohm
Step degrees
1.8°
SKU
13039135
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
