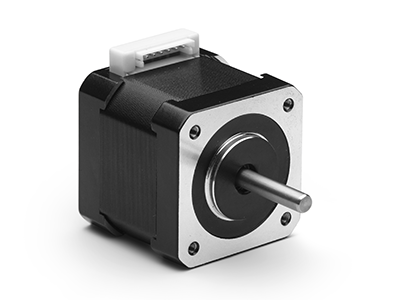

Stepping motor 1.8° 162.26lb-ft 1.33A 42x42mm Connector

Product name: SHC4234-18-133 | SKU: 13039126

Stepping motor with specifications step angle 1.8° holding torque 162.26lb-ft current 1.33A size 42x42mm connection Connector. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.
