SD3039-12-36-F
SD3039-12-36-F
≥ 1 pcs
$95.00
≥ 5 pcs
$78.70
≥ 25 pcs
$41.60
≥ 50 pcs
$26.40
≥ 100 pcs

In stock

  • Specification
  • Customizations

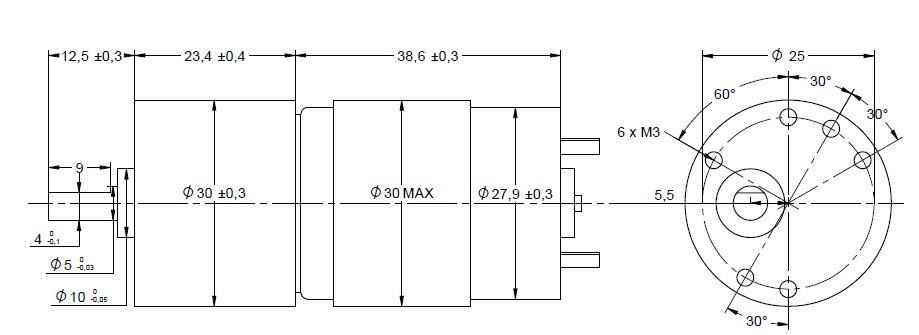

  • Drawing
  • Datasheet and downloads
Voltage
12 V
Diameter
30 mm
Power
4.22 W
Length
62 mm
Nominal speed
150 rpm
Nominal torque
147 mNm
Current at maximum load
2.1 A
Weight
0.223 kg
SKU
10080012
Some of the possible customizations:
Shaft length
Shaft profile
Connectors
Cabling
Gear & pinion material
Operating temperature
For any inquiries regarding customizations, please contact us at:
Catalog
Datasheet
Drawing
3D CAD (.stp)
