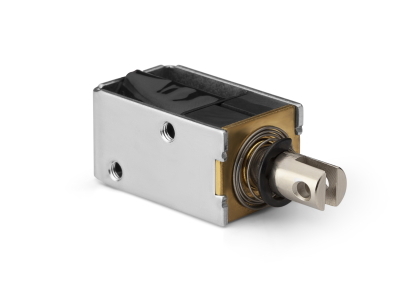

Latching solenoid 24VDC 0.61lbf 2.5W
Product name: K0625L-24V | SKU: 20062511
Latching solenoid , self holding, bistable magnet voltage 24VDC force 0.61lbf stroke power 2.5W The force can be significantly increased with limited energized time and with connection to a higher supply voltage. A latching function is achieved through a built-in permanent magnet, whose magnetism is neutralized by reversed current direction. The solenoids come with a return spring and are available in various construction types such as open, cylindrical, self-holding and holding magnet design. All solenoids are available in pull L or push S designs and can be customized as needed. Common adaptations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$50.00
≥ 5 pcs
$40.00
≥ 25 pcs
$33.30
≥ 50 pcs
$28.60
≥ 100 pcs

In stock

Power
2.5W
Voltage
24VDC
Profile
Square
Length
0.98in
Profile height
0.59in
Profile width
0.51in
Peak force
0.61lbf
Type
Pull
Weight
0.88oz
SKU
20062511
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note

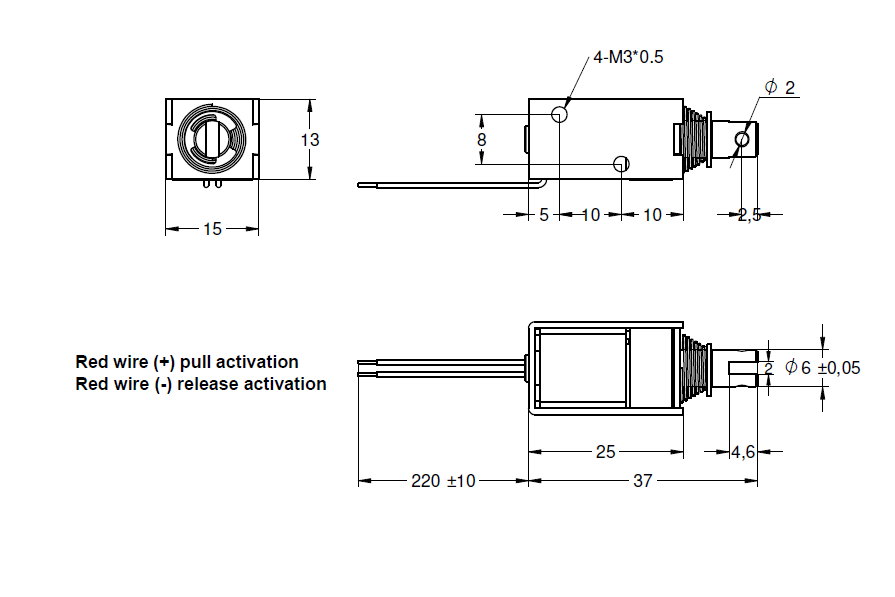

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
