Home
/ Linear actuators
/ Controls
/ Controls

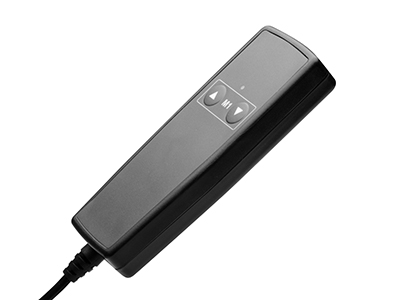

HDL-DDLA-24-2
» Product documents
» Accessories
Controls
Product name: HDL-DDLA-24-2 | SKU: 16024318
Controll for control box type Asynchronous number of actuators 2 suitable for control box DDLA-24-2
≥ 1 pcs
€53.50
≥ 5 pcs
€43.50
≥ 25 pcs
€21.50
≥ 50 pcs
€13.50
≥ 100 pcs
In stock p >
Spin Up
Spin Down
Specification
Customizations
Drawing
Datasheet and downloads
Accessories
Specification
Number of actuators
2
Type
Asynchronous
Suitable for control box
DDLA-24-2
Weight
220g
SKU
16024318
Customizations
Some of the possible customizations:
Cable lengths and connectors
For any inquiries regarding customizations, please contact us at:
info@transmotec.com
+46 8-792 35 30

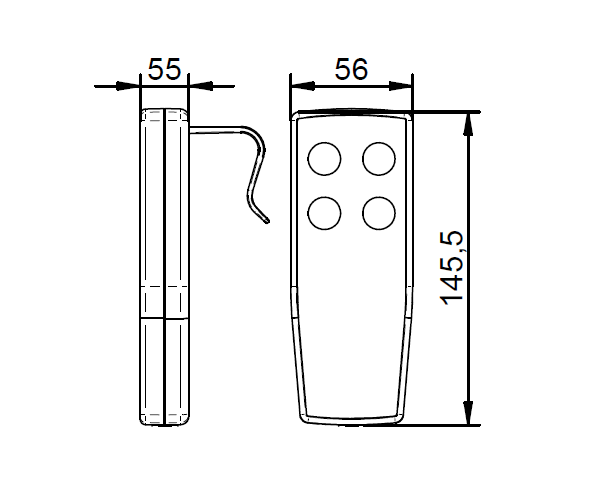

Drawing (mm)
Datasheet and downloads (mm)
Datasheet
Drawing
Catalog
3D CAD (.stp)
Note
Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please
contact us
for more information about the dimensions of these specific details.
