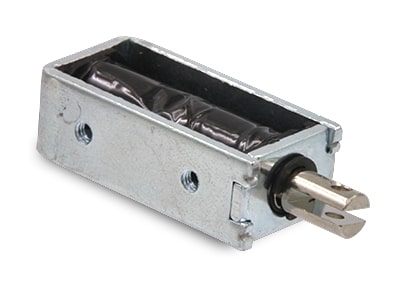

Solenoid open frame 24VDC 0.13lbf 0.39in 1.7W
Product name: F0530L-24V | SKU: 20053003
Solenoid open frame type voltage 24VDC force 0.13lbf stroke 0.39in power 1.7W. The force can be significantly increased with limited energized time and with connection to higher supply voltage. The solenoids come with a return spring, and are available in various construction types such as open, cylindrical, self-holding latching bistable and holding magnet designs. All solenoids are available in mechanical pull L or push S designs and can be customized per request. Common customizations are mechanical as well as cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$44.00
≥ 5 pcs
$35.00
≥ 25 pcs
$27.70
≥ 50 pcs
$15.70
≥ 100 pcs

In stock

Power
1.7W
Voltage
24VDC
Profile
Square
Length
1.2in
Profile height
0.59in
Profile width
0.39in
Peak force
0.13lbf
Type
Pull
Weight
1.09oz
SKU
20053003
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
