DMA-12-10-A-203-IP65
DMA-12-10-A-203-IP65
≥ 1 pcs
€668.60
≥ 2 pcs
€592.70
≥ 5 pcs
€533.40
≥ 10 pcs
€352.60
≥ 25 pcs

In stock

  • Specification
  • Customizations

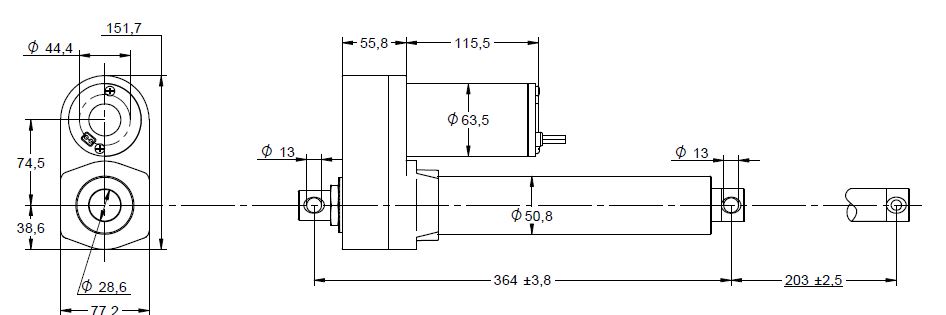

  • Drawing
  • Datasheet and downloads
Voltage
12 V
Maximum Force
1500 N
Speed at maximum load
28 mm/s
Stroke length
203 mm
Current at maximum load
18 A
Weight
4.8 kg
SKU
11004003
Some of the possible customizations:
Stroke length (min. 50mm – max. 1000mm)
Limit switch output signals
Control box & hand controller
Dimension tolerances
Vertical or horizontal mounting holes
Front connector type/dimensions
Ambient temperature
Voltage (36VDC, 48VDC)
Connectors
Cabling
Single channel hall effect sensor
For any inquiries regarding customizations, please contact us at:
Catalog
Datasheet
Drawing
3D CAD (.stp)
