Brushless motor 12VDC 4.5A 5000rpm 35W
Product name: BT4266-12-I | SKU: 15999179
Brushless DC motor, BLDC motor voltage 12VDC current 4.5A speed 5000rpm power 35W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$153.50
≥ 5 pcs
$123.50
≥ 25 pcs
$103.50
≥ 50 pcs
$89.50
≥ 100 pcs

Available on backorder

Power
35W
Voltage
12VDC
Nominal speed
5000rpm
Nominal torque
9.49oz-in
Length
2.6in
Nominal current
4.5A
Diameter
1.65in
Weight
13.4oz
SKU
15999179
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note

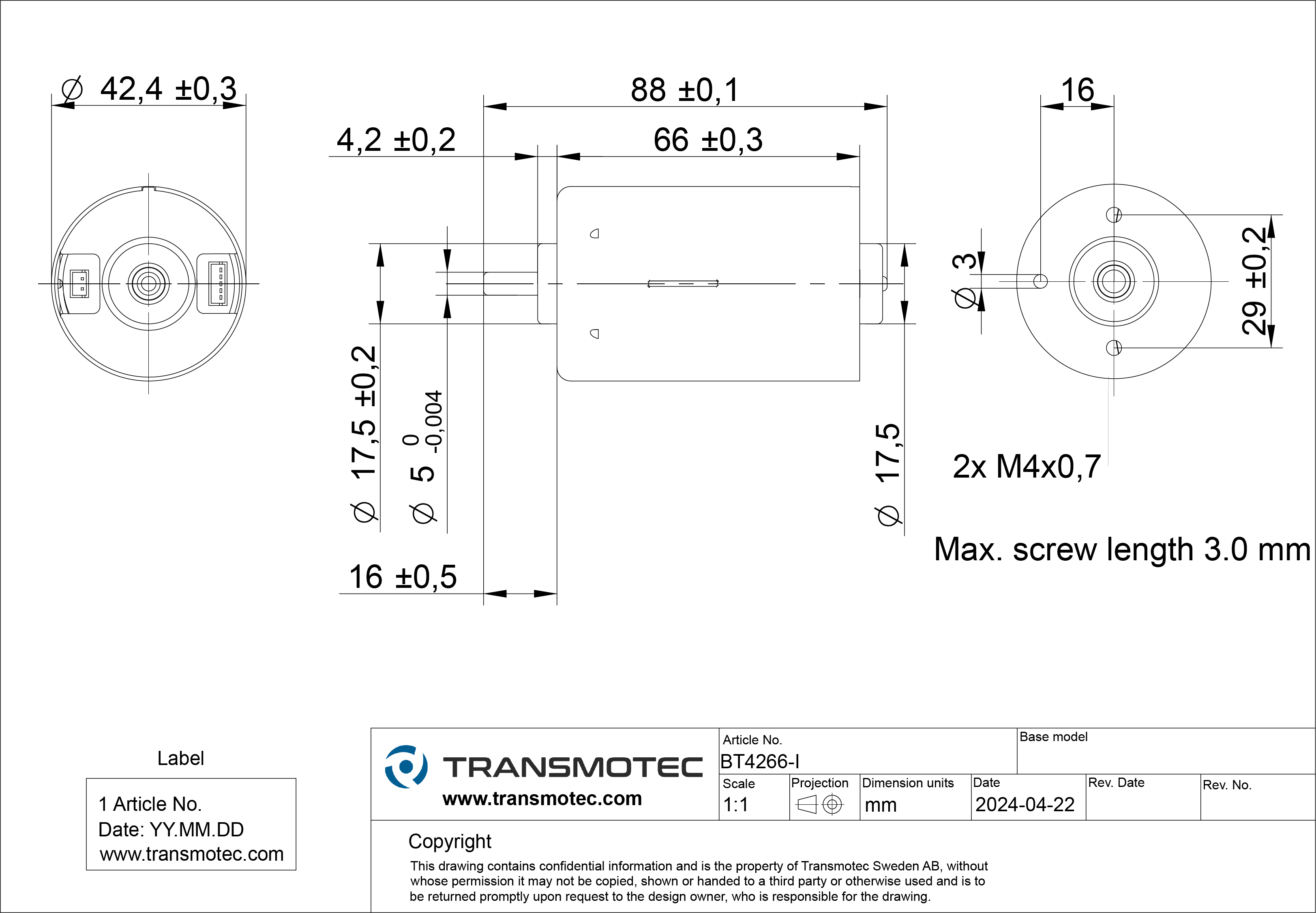

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
