Brushless motor 24VDC 1.1A 5200rpm 20W
Product name: BT3649-24 | SKU: 15999169
Brushless DC motor, BLDC motor voltage 24VDC current 1.1A speed 5200rpm power 20W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€92.00
≥ 5 pcs
€74.00
≥ 25 pcs
€62.00
≥ 50 pcs
€53.50
≥ 100 pcs

Available on backorder

Power
20W
Voltage
24VDC
Nominal speed
5200rpm
Nominal torque
37mNm
Length
49mm
Nominal current
1.1A
Diameter
36mm
Weight
200g
SKU
15999169
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note

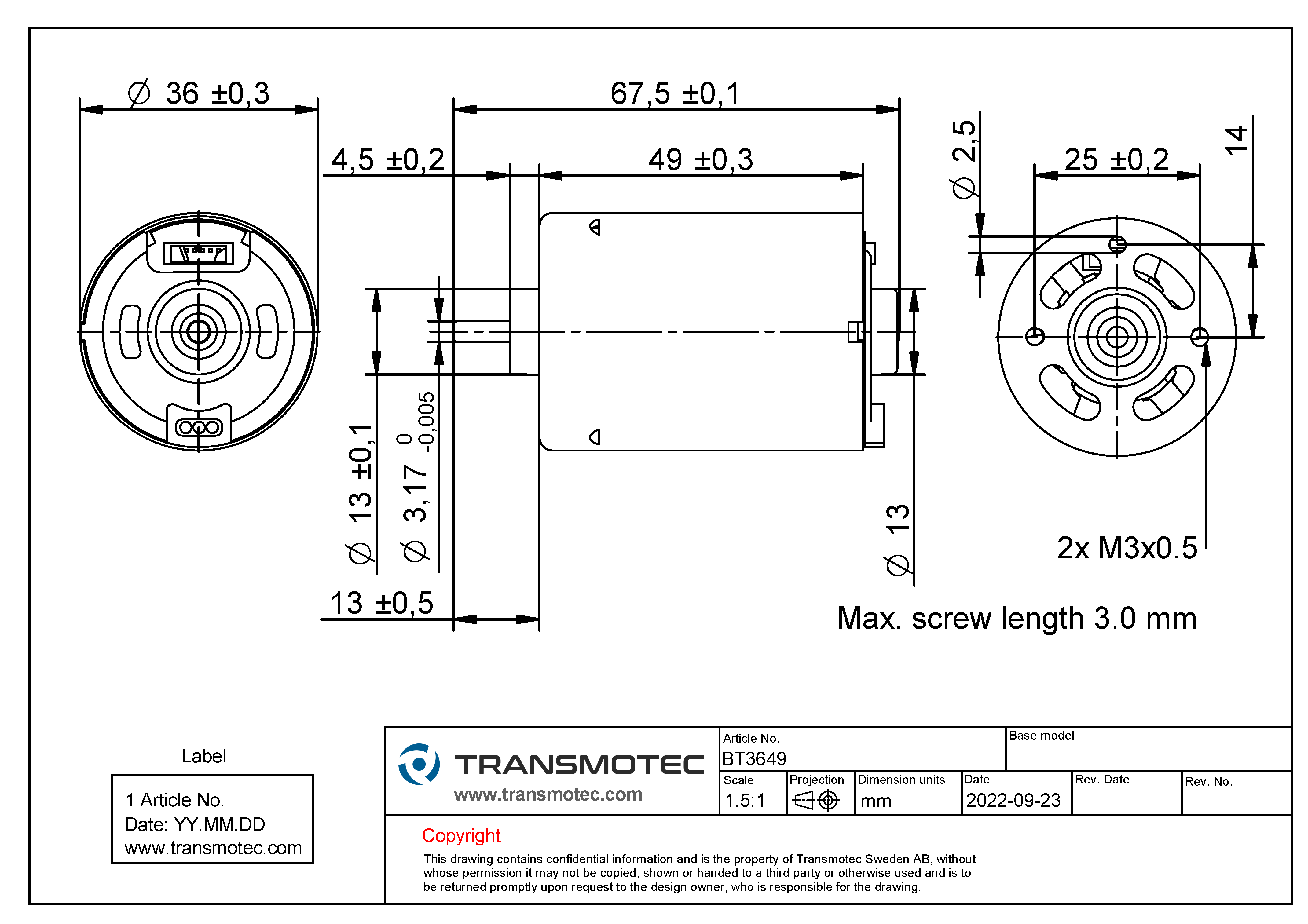

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
