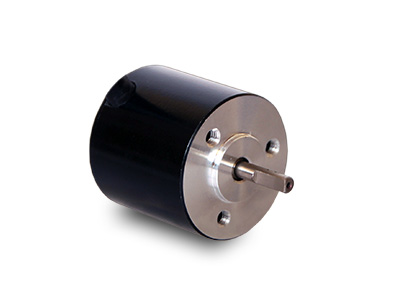

Brushless motor 12VDC 0.69A 8000rpm 5.9W
Product name: BR2826-12 | SKU: 13042062
Brushless DC motor, BLDC motor voltage 12VDC current 0.69A speed 8000rpm power 5.9W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$212.00
≥ 5 pcs
$177.20
≥ 25 pcs
$128.60
≥ 50 pcs
$83.20
≥ 100 pcs

In stock

Power
5.9W
Voltage
12VDC
Nominal speed
8000rpm
Nominal torque
0.99oz-in
Length
1.02in
Profile height
0in
Profile width
0in
Nominal current
0.69A
Diameter
1.1in
Weight
2.12oz
SKU
13042062
Some of the possible customizations:
Shaft length
Shaft profile (D-shaft or circular)
Gearbox
Connectors
Encoder
For any inquiries regarding customizations, please contact us at:
Note

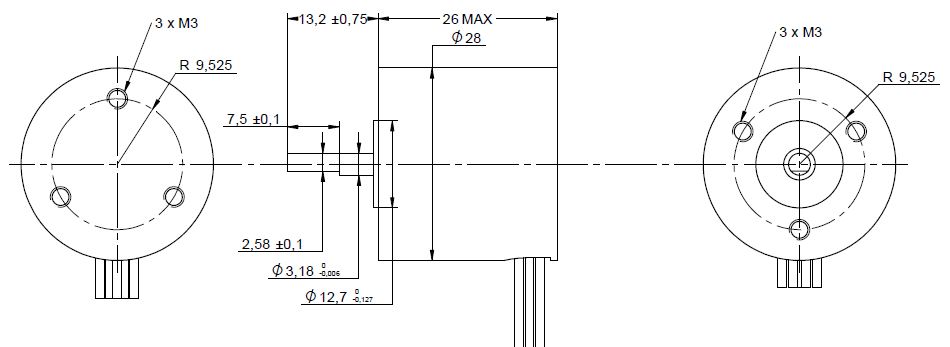

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
