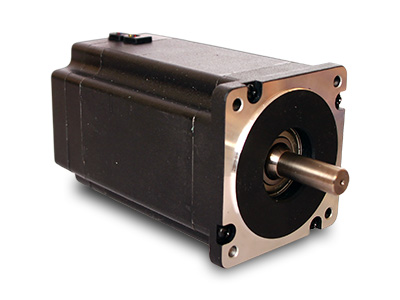

Brushless motor 48VDC 19A 3000rpm 660W
Product name: B86139-48 | SKU: 13042058
Brushless DC motor, BLDC motor voltage 48VDC current 19A speed 3000rpm power 660W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$822.60
≥ 2 pcs
$735.30
≥ 5 pcs
$521.20
≥ 10 pcs
$359.40
≥ 25 pcs

In stock

Power
660W
Voltage
48VDC
Nominal speed
3000rpm
Nominal torque
1.5489lb-ft
Length
5.47in
Profile height
3.39in
Profile width
3.39in
Nominal current
19A
Diameter
0in
Weight
9.26lb
SKU
13042058
Some of the possible customizations:
Shaft length
Shaft profile (D-shaft or circular)
Gearbox
Connectors
Encoder
For any inquiries regarding customizations, please contact us at:
Note

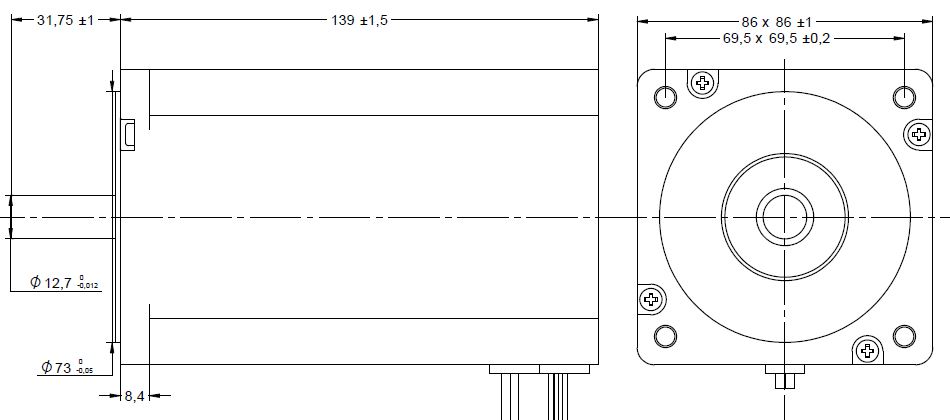

Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
