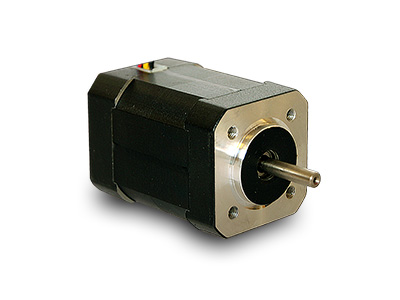

B4260-12
B4260-12
≥ 1 pcs
€216.70
≥ 5 pcs
€182.80
≥ 25 pcs
€128.10
≥ 50 pcs
€83.60
≥ 100 pcs

In stock

  • Specification
  • Customizations

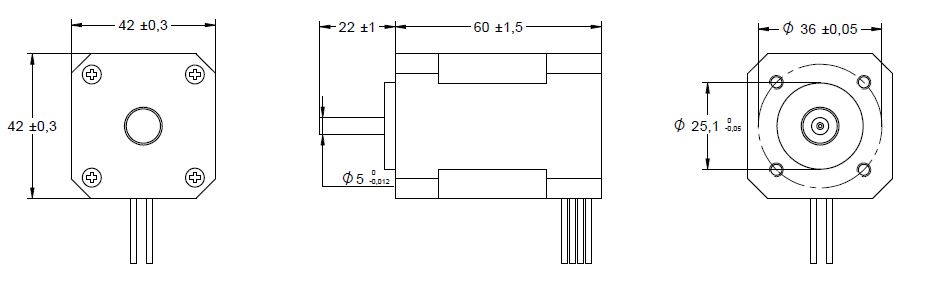

  • Drawing
  • Datasheet and downloads
Voltage
12 V
Diameter
42 mm
Nominal speed
4000 rpm
Nominal torque
150 mNm
Power
52 W
Length
60.3 mm
Current at maximum load
6.2 A
Profile height
42 mm
Profile width
42 mm
Weight
0.54 kg
SKU
13042088
Some of the possible customizations:
Shaft length
Shaft profile (D-shaft or circular)
Gearbox
Connectors
Encoder
For any inquiries regarding customizations, please contact us at:
Catalog
Datasheet
Drawing
3D CAD (.stp)
