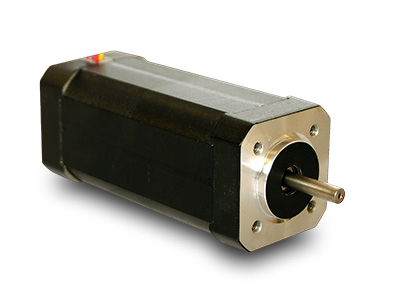

B42100-24
Brushless motor 24V 6.5A 4000rpm 105W
Productname: B42100-24 | SKU: 13042053
Brushless DC motor, BLDC motor voltage 24V current 6.5A speed 4000rpm power 105W. The motors include a range of supply voltages between 12-48V and have hall elements intended for connection to external drive electronics. Mechanical structures with circular or square flange. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
$318.80
≥ 5 pcs
$269.90
≥ 25 pcs
$191.30
≥ 50 pcs
$126.60
≥ 100 pcs

In stock

Voltage
24V
Diameter
0mm
Nominal speed
4000rpm
Nominal torque
300mNm
Power
105W
Length
100.3mm
Current at maximum load
6.5A
Profile height
42mm
Profile width
42mm
Weight
1kg
SKU
13042053
Some of the possible customizations:
Shaft length
Shaft profile (D-shaft or circular)
Gearbox
Connectors
Encoder
For any inquiries regarding customizations, please contact us at:
Datasheet

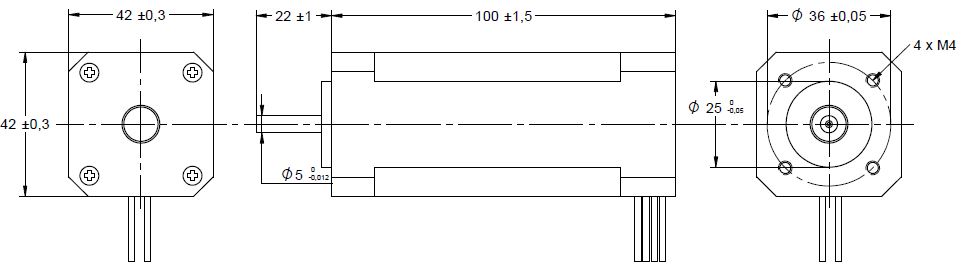

Drawing
Catalog
3D CAD (.stp)
