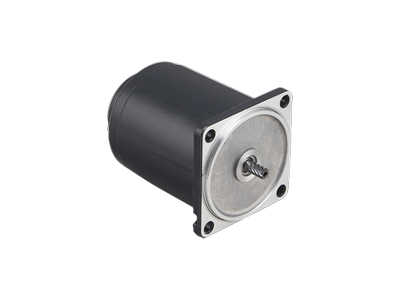

AIS-015W-230-SC
Speed adjustable AC-gear motors 230VAC , current 0.32-0.2A, rated speed at 90-1200rpm and power 15W.
Product name: AIS-015W-230-SC | SKU: 22300003
Induction AC-gear motors, alternating current motors voltage of 230VAC , current 0.32-0.2A, rated speed 90-1200rpm, power 15W. Transmotec sell a broad range of geared AC motors in standard and customized configurations. These speed adjustable AC motors are designed for applications that require the motor speed to be set at various speeds. The motors have a small analogue generator built to the rear shaft that is connected to a separate speed controller unit.Transmotec is the ideal supplier source specially to instrument and apparatus builders. We keep a high number of motors in stock for immediate delivery. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€100.50
≥ 5 pcs
€83.00
≥ 25 pcs
€71.50
≥ 50 pcs
€68.50
≥ 100 pcs

In stock

Power
15W
Voltage
230VAC
Frequency
50Hz
Phases
1
Nominal speed
90-1200rpm
Nominal torque
120mNm
Type
Speed adjustable
Size
70x70mm
Profile
Square
Nominal current
0.32-0.2A
Weight
1.2kg
SKU
22300003
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note
Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
