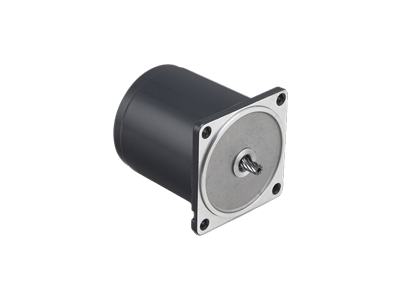

AI-025W-120-SC
AC motor for voltage of 110-120VAC, current 0.45-0.5A, rated speed at 1550rpm and power 25W.
Product name: AI-025W-120-SC | SKU: 22100009
Induction AC-gear motors, alternating current motors voltage of 110-120VAC, current 0.45-0.5A, rated speed 1550rpm power 25W. Transmotec sell a broad range of geared AC motors in standard and customized configurations. These AC gear motors are designed for continuous operation and hundred percent duty cycle. Transmotec is the ideal supplier source specially to instrument and apparatus builders. We keep a high number of motors in stock for immediate delivery. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€86.88
≥ 5 pcs
€72.19
≥ 25 pcs
€62.40
≥ 50 pcs
€59.95
≥ 100 pcs

Available on backorder

Power
25W
Voltage
110-120VAC
Frequency
60Hz
Phases
1
Nominal speed
1550rpm
Nominal torque
165mNm
Nominal current
0.45-0.5A
Size
80x80mm
Type
Profile
Square
Weight
1.6kg
SKU
22100009
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Datasheet
Drawing
Catalog
3D CAD (.stp)
