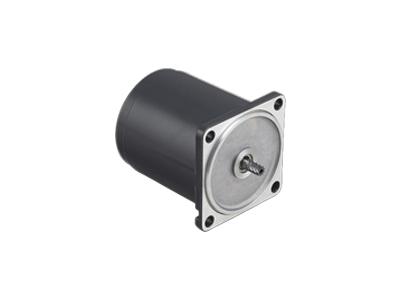

AI-015W-120-SC
AC motor for voltage of 120VAC , current 0.3-0.32A, rated speed at 1500rpm and power 15W.
Product name: AI-015W-120-SC | SKU: 22100004
Induction AC-gear motors, alternating current motors voltage of 120VAC , current 0.3-0.32A, rated speed 1500rpm power 15W. Transmotec sell a broad range of geared AC motors in standard and customized configurations. These AC gear motors are designed for continuous operation and hundred percent duty cycle. Transmotec is the ideal supplier source specially to instrument and apparatus builders. We keep a high number of motors in stock for immediate delivery. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling. Read more here about customizations and please contact us for further information.
≥ 1 pcs
€87.00
≥ 5 pcs
€71.50
≥ 25 pcs
€61.50
≥ 50 pcs
€59.00
≥ 100 pcs

In stock

Power
15W
Voltage
120VAC
Frequency
60Hz
Phases
1
Nominal speed
1500rpm
Nominal torque
110mNm
Type
Size
70x70mm
Profile
Square
Nominal current
0.3-0.32A
Weight
1.1kg
SKU
22100004
Some of the possible customizations:
For any inquiries regarding customizations, please contact us at:
Note
Some of the details in the CAD models and drawings such as connectors, interfaces, wiring and other non-dimensioned details are simplified. As such, geometric details of simplified parts in the CAD material may be different from the real product. Please contact us for more information about the dimensions of these specific details.
