Stepping motors of hybrid type with 0.9 degree step angle. Holding torque between 0.05-1.80 Nm. Supplied with cable connection. Our entire Stepping motor range includes a range of hybrid type Stepping motors with a stepping angle between 0.9 and 1.8 degrees. Holding torque between 0.002-28.00 Nm and flange sizes between 20 - 110 mm. The motors comes with a cable or connector connection. Stepping motor drivers Transmotec DSH are sold separately, as well as power supplies Transmotec LRS. All motors can be customized as needed and also delivered with gear head and encoder. Common adaptations are shaft dimensions, cable connections and cabling. Read more here about customer adaptations and feel free to contact us for further information.

Stepping motors stepping angle 0.9 degrees Cable

Size
35 - 57 mm
Holding torque
50 mNm - 1.8 Nm
Current
0.28 - 2.8 A
Inductance
2.2 - 145 mH

Stepping motors stepping angle 1.8 degrees Connector

Size
20 - 60 mm
Holding torque
18 mNm - 3 Nm
Current
0.6 - 2.8 A
Inductance
1.5 - 6.8 mH

Stepping motors stepping angle 1.8 degrees Cable

Size
28 - 110 mm
Holding torque
60 mNm - 28 Nm
Current
0.28 - 8 A
Inductance
1.4 - 50 mH

Stepping motor drivers

Voltage
18 - 220 VDC
Current
1.6 – 8 A
Product Nominal current Holding torque Inductance Length Profile width Resistance Step degrees Type Sample price Stock PDF
SHW3520-09-100 SHW3520-09-1001 A50 Nm8,5 mH20 35 10 0,9 °/stepCable
22.50 EUR

Yes

Datasheet PDF
SHW3526-09-050 SHW3526-09-0500,5 A90 Nm6,9 mH26 35 6,1 0,9 °/stepCable
24.00 EUR

Yes

Datasheet PDF

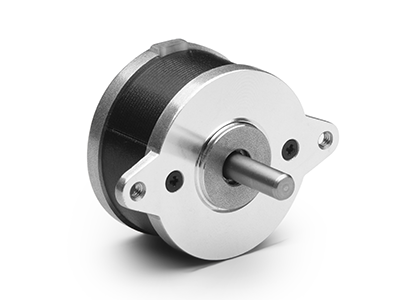

SHW3620-09-080 SHW3620-09-0800,8 A90 Nm4,8 mH20,5 36 5,5 0,9 °/stepCable
21.50 EUR

Yes

Datasheet PDF
SHW3944-09-028 SHW3944-09-0280,28 A297 Nm145 mH44,5 39 60 0,9 °/stepCable
56.00 EUR

Yes

Datasheet PDF
SHW4234-09-133 SHW4234-09-1331,33 A220 Nm4,2 mH33,5 42 2,1 0,9 °/stepCable
32.50 EUR

Yes

Datasheet PDF
SHW4240-09-168 SHW4240-09-1681,68 A330 Nm4,1 mH39,5 42 1,8 0,9 °/stepCable
39.00 EUR

Yes

Datasheet PDF
SHW4247-09-168 SHW4247-09-1681,68 A440 Nm5 mH47,5 42 1,8 0,9 °/stepCable
46.00 EUR

Yes

Datasheet PDF
SHW5741-09-280 SHW5741-09-2802,8 A550 Nm2,2 mH41 57 0,7 0,9 °/stepCable
48.00 EUR

Yes

Datasheet PDF
SHW5756-09-280 SHW5756-09-2802,8 A1200 Nm4,5 mH56 57 0,9 0,9 °/stepCable
66.50 EUR

Yes

Datasheet PDF
SHW5776-09-280 SHW5776-09-2802,8 A1800 Nm5,6 mH76 57 1,13 0,9 °/stepCable
96.50 EUR

Yes

Datasheet PDF
1 of 1 pages (10 items)
